Insulon® Vacuum Jacketed Products for Critical Thermal Management
Concept Group LLC uses proprietary Insulon® technology to manufacture some of the most advanced vacuum jacketed products in the world. With a focus on thermal management for critical fluid transfer applications, Concept Group supplies Insulon® products to industrial manufacturers, OEMs, research labs, and system integrators to help them achieve unparalleled thermal precision in low and high temperature applications.
Shop Insulon® Products → Request Custom Quote →
Insulon® Vacuum Jacketed Transfer Lines for Thermal Fluid Handling
- Achieve unparalleled thermal management for fluid transfer lines in critical applications
- Manufactured with Concept Group’s proprietary Insulon® vacuum insulation for maximum thermal efficiency
- Unique features include a fully hermetically sealed vacuum space with no pump-out port
- Option to include Concept Group’s proprietary, high-density multi-layer insulation (MLI)
- Constructed from 316/316L stainless steel; for even higher temperature applications, alloys such as Inconel and Hastelloy are available
- Select from a range of end fitting options including compression fitting, adaptors, flanges, flares, VCR, and more
Insulon® Vacuum Jacketed Hose
- For fluid temperatures from -270 to +815 degrees Celsius
- Hermetically sealed vacuum space with no pump-out port
- Fully metallic wetted surfaces
- Corrugated inner bore
- Inner bore sizes include 1/4″ ID, 3/8″ ID, 1/2″ ID, 3/4″ ID, and 1″ ID
Learn more about Insulon® Vacuum Jacketed Hose →
Insulon® Heat Exchangers
- For fluid temperatures from -270 to +815 degrees Celsius
- Triple-layer design (two fluid paths and one layer of vacuum insulation)
- Option to include fluoropolymer liner for smooth, non-metallic internal bore
- Inner bore sizes include 1/4″ ID, 3/8″ ID, 1/2″ ID, and 3/4″ ID
Learn more about Insulon® Vacuum Jacketed Heat Exchangers →
Insulon® Fluoropolymer Tubing
- For fluid temperatures from approximately -200 to +260 degrees Celsius, depending on the fluoropolymer (PTFE, PFA, or FEP)
- Smooth internal bore
- Non-metallic wetted surface
- Inner bore sizes include 1/16″ ID, 1/8″ ID, 1/4″ ID, 3/8″ ID, 1/2″ ID, and 3/4″ ID
Learn more about Insulon® Vacuum Jacketed Fluoropolymer Tubing →
Engineered to optimize thermal management in critical fluid transfer applications.
Aerospace | Chiller Supply & Return Lines | Cleanroom Manufacturing | Cryogenic Fluids | Deposition Gases | Environmental Test Chambers | Exhaust Gases | Food Processing | Heat Transfer Fluids | High Temperature Gases | Industrial Gas Supply | Liquid Argon | Liquid Carbon Dioxide | Liquid Helium | Liquid Hydrogen | Liquid Nitrogen | Liquid Oxygen | OEMs | Pharmaceutical Manufacturing | Precursor Gases | Process Heating and Cooling | Research Laboratories | Quantum Computing | Semiconductor Manufacturing | Scientific Instruments | Steam Transfer | Superconductors | Temperature Control Units (TCUs) | Vacuum Chambers
Insulon® Components for Medical and Surgical Devices

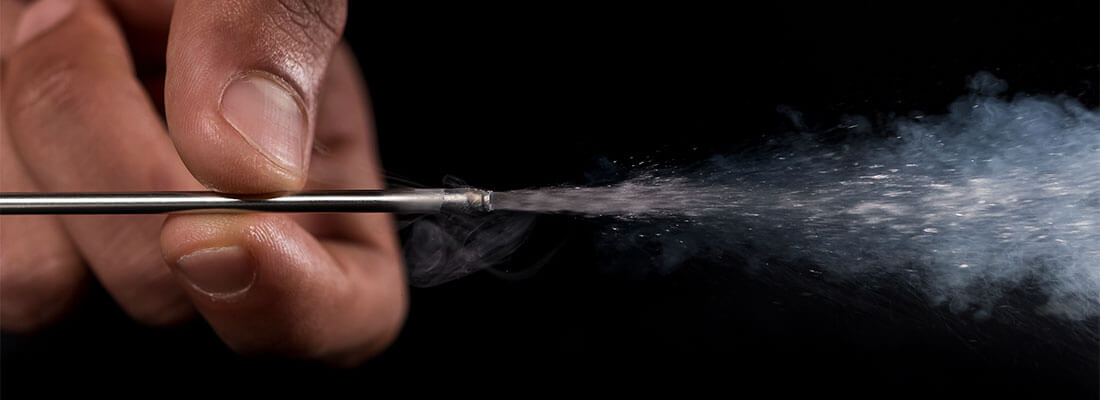

Insulon® components are manufactured in geometries with overall wall thickness under 0.25 mm. These ultra-thin design capabilities make Insulon® components ideal solutions for medical and surgical devices. Often considered an alternative to aerogel and pyrogel, Insulon® delivers thermal solutions where other insulation materials are insufficient or ineffective. Applications include insulated cryoneedles for cryoablation therapies, safe transfer of cold and hot fluids, and storage for temperature-sensitive medications and other materials.
Medical-grade insulation →
Custom Insulon® Products for OEMs
Concept Group LLC manufactures custom Insulon® vacuum insulated products with overall wall thicknesses as low as 0.25 mm, depending on overall geometry. These ultra-thin design capabilities make Insulon® components ideal solutions for novel devices across industrial and commercial applications. An easy-to-install alternative to aerogel and pyrogel insulation, Insulon® products deliver thermal management solutions where other materials have proven insufficient or ineffective. Custom Insulon® product development goes through Concept Group’s proven Core Process.
- Cryogenic or high temperature applications
- Ultra-high performance insulation
- Food-grade insulation including cool-touch steam wands for espresso machines
- Cleanroom-compliant materials
- Option to include proprietary, high-density multi-layer insulation (MLI)
Articles
Explore more articles →About
Concept Group is the sole and exclusive developer and manufacturer of Insulon® vacuum insulation. All Insulon® vacuum jacketed products are engineered and manufactured in-house at our facility in the United States.
