How to build your Insulon vacuum jacketed hose assembly

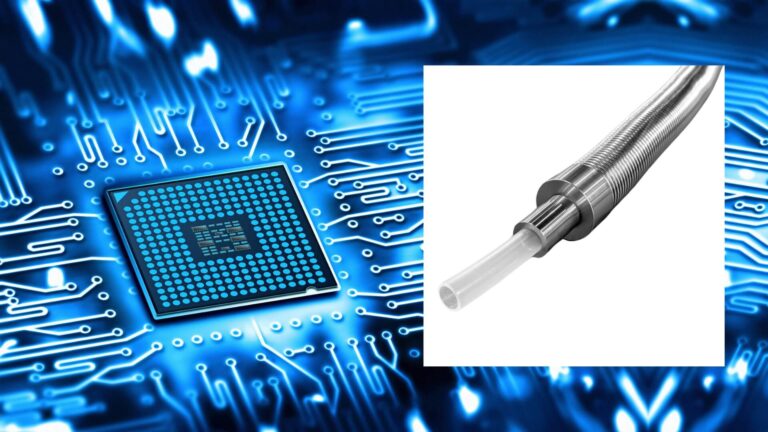

Insulon vacuum jacketed hoses are available in a variety of formats to suit your application. Whether you need to safely transfer liquid nitrogen, chiller and heat transfer fluids, steam, or high temperature gases or oils, the Insulon Hose product line can be adjusted to suit your specifications without overengineering. Option to sleeve over PTFE/PFA for corrosive media. Select insulation performance level, pressure rating, and end configurations to suit your specific application.
Applications
Cryogenic fluids
Reduce operating costs with low-maintenance, pump-down-free vacuum jacketed hoses for industrial gas supply, cryo-freezers, and cryogenic hydrogen applications.
Low-temperature chillers
Maximize energy efficiency and minimize condensation with easy-to-install Insulon hoses for chiller supply and return lines. Available in lengths up to 20 meters (66 feet).
Process heating and cooling
Maximize performance for temperature control units (TCUs) used for process heating and cooling in semiconductor, chemistry, research, and laboratory applications.
Exhaust lines
Insulate high temperature exhaust gases with double-walled Insulon Hoses. May also be used to route cables and wires in high temperature environments.
Steam transfer
Improve safety in high temperature, high pressure steam transfer applications in food production and other industries with lightweight, flexible Insulon Hoses.
Other applications
Contact us regarding thermally insulation for fluid transfer from -270 to 815C (-454 to 1500F).
1. Select diameter and length
Diameters: 1/4″ ID (DN6), 3/8″ ID (DN10), 1/2″ ID (DN12), 3/4″ ID (DN20), 1″ ID (DN25)
Lengths: 1.5 to 66′ (0.5 to 20 meters)
2. Choose your performance level
Insulon Hose is available in two performance levels so that you can select the right one for your application. Standard hoses feature a smaller outer diameter, lighter weight, and more flexibility. MLI hoses include multi-layer insulation for maximum thermal insulation performance.
Selecting the right performance level for cryogenic applications →
Selecting the right performance level for high temperature applications →
Standard Performance
Standard Insulon hoses feature a sleek, compact design with smaller outer diameters than most other vacuum insulated hoses. The lightweight, ergonomic design saves space while improving handling.
ID: 0.25 in (6 mm)
OD: 1.05 in (27 mm)
ID: 0.375 in.
OD: 1.05 in.
ID: 0.50 in (12 mm)
OD: 1.27 in (32 mm)
ID: 0.75 in (20 mm)
OD: 1.62 in (41 mm)
ID: 1.00 in (25 mm)
OD: 1.95 in (50 mm)
Multi-Layer Insulation (MLI) Performance
Insulon hoses with MLI deliver maximum thermal insulation performance. Our proprietary, high-density multi-layer insulation is installed inside the vacuum space to minimize radiation heat transfer.
ID: 0.25 in (6 mm)
OD: 1.27 in (32 mm)
ID: 0.375 in.
OD: 1.62 in.
ID: 0.50 in (12 mm)
OD: 1.62 in (41 mm)
ID: 0.75 in (20 mm)
OD: 2.38 in (60 mm)
ID: 1.00 in (25 mm)
OD: 2.38 in (60 mm)
3. Select pressure rating
Low Pressure
| Maximum Fluid Temperature | Maximum Allowable Working Pressure (MAWP) [psi] | |||||
| Celsius | Fahrenheit | 1/4″ ID | 3/8” ID | 1/2” ID | 3/4″ ID | 1″ ID |
| 38 | 100 | 72 | 72 | 72 | 43 | 43 |
| 93 | 200 | 65 | 65 | 65 | 39 | 39 |
| 149 | 300 | 61 | 61 | 61 | 36 | 36 |
| 204 | 400 | 56 | 56 | 56 | 33 | 33 |
| 260 | 500 | 55 | 55 | 55 | 33 | 33 |
| 316 | 600 | 54 | 54 | 54 | 32 | 32 |
| 371 | 700 | 53 | 53 | 53 | 31 | 31 |
| 427 | 800 | 52 | 52 | 52 | 31 | 31 |
| 482 | 900 | 48 | 48 | 48 | 29 | 29 |
| 538 | 1000 | 33 | 33 | 33 | 20 | 20 |
| 593 | 1100 | 21 | 21 | 21 | 13 | 13 |
| 649 | 1200 | 13 | 13 | 13 | 8 | 8 |
| 704 | 1300 | 9 | 9 | 9 | 5 | 5 |
| 760 | 1400 | 4 | 4 | 4 | 2 | 2 |
| 816 | 1500 | 3 | 3 | 3 | 2 | 2 |
High Pressure
| Maximum Fluid Temperature | Maximum Allowable Working Pressure (MAWP) [psi] | |||||
| Celsius | Fahrenheit | 1/4″ ID | 3/8” ID | 1/2” ID | 3/4″ ID | 1″ ID |
| 38 | 100 | 750 | 750 | 750 | 600 | 500 |
| 93 | 200 | 682 | 682 | 682 | 546 | 455 |
| 149 | 300 | 637 | 637 | 637 | 510 | 425 |
| 204 | 400 | 585 | 585 | 585 | 468 | 390 |
| 260 | 500 | 577 | 577 | 577 | 462 | 385 |
| 316 | 600 | 570 | 570 | 570 | 456 | 380 |
| 371 | 700 | 555 | 555 | 555 | 444 | 370 |
| 427 | 800 | 547 | 547 | 547 | 438 | 365 |
| 482 | 900 | 510 | 510 | 510 | 408 | 340 |
| 538 | 1000 | 350 | 350 | 350 | 280 | 233 |
| 593 | 1100 | 228 | 228 | 228 | 183 | 152 |
| 649 | 1200 | 143 | 143 | 143 | 114 | 95 |
| 704 | 1300 | 93 | 93 | 93 | 75 | 62 |
| 760 | 1400 | 48 | 48 | 48 | 39 | 32 |
| 816 | 1500 | 39 | 39 | 39 | 31 | 26 |
4. Integrate end fittings (optional)
Select from a wide range of end configurations including compression unions and reducers, compression adapters (NPT, BSPT, etc.), flared swivel nuts (CGA, JIC, Precision AN, etc.), flanges, VCR, metric fittings (M16x1, M24x1.5, M30x1.5, M38x1.5), and more. Integration with custom end fittings also available.
By default, Insulon hose are shipped with fully-weldable 316 stainless steel tube stubs.
5. Add outer braid (optional)
For applications that require enhanced durability and abrasion resistance, select Insulon Vacuum Jacketed Hose with an outer braid. Engineered for rugged or high-movement environments where hoses may be dragged or handled frequently, including truck and trailer sample lines.
