Insulon Vacuum Jacketed Hose, High Pressure, Standard, 1/2″ ID with M16x1f end fittings
Request a quote
Insulon Vacuum Jacketed Hose, 1/2″ ID with M16x1.female fittings. Engineered for process heating and cooling systems including industrial chillers and circulators.
Description

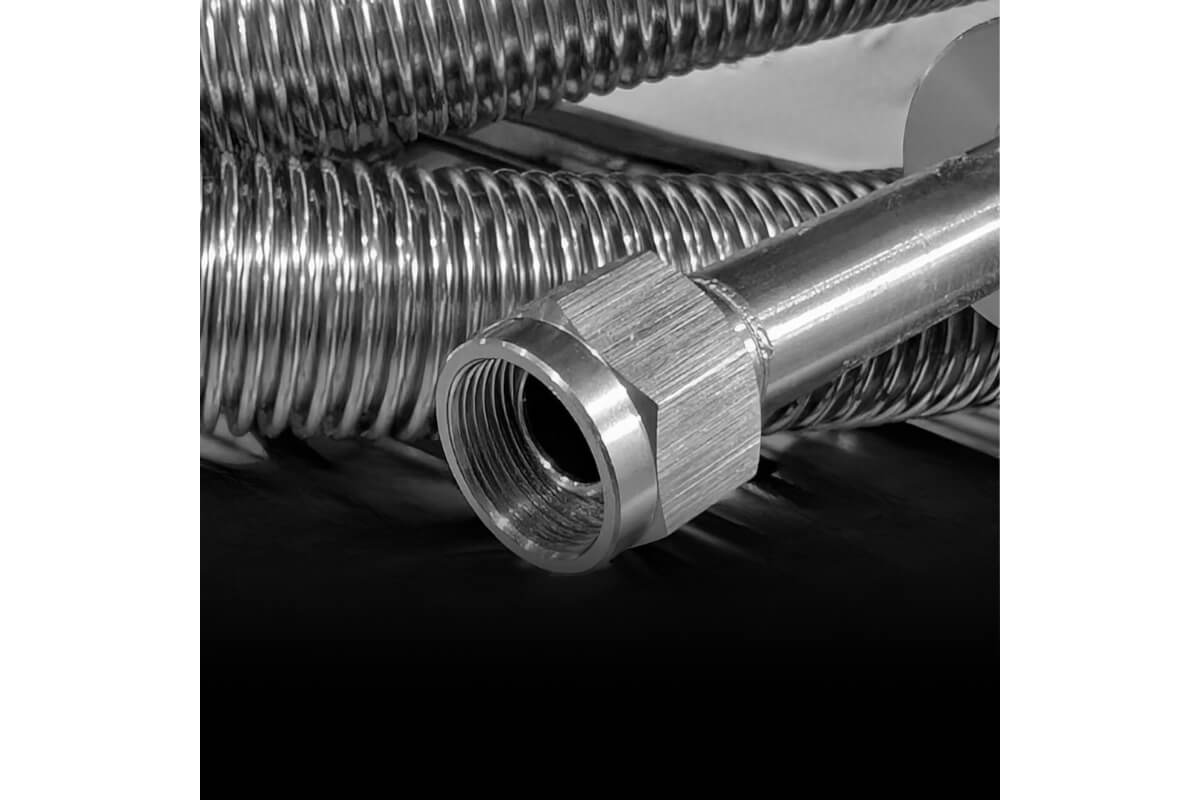

1/2″ ID Insulon Vacuum Jacketed Hose with M16x1 female end fittings for connection to process heating and cooling systems. Built for use with chillers, circulators, and other temperature-controlled process equipment, it delivers ultra-high performance thermal insulation to reduce heat gain/loss and maintain stable fluid temperatures in semiconductor, pharmaceutical, bioprocessing, and other demanding environments.
- Stainless steel wetted and exterior surfaces
- Silicone-free construction
- Ultra high performance vacuum insulation
- Covers entire temperature range (Insulon Hose is compatible with fluids from -270 to 815C)
- Lengths from 1.5 to 66 feet
Technical Specifications
| Hose Inner Diameter (ID) | |
|---|---|
| Outer Diameter (OD) | 1.27" |
| Lengths | 1.5 – 66 feet (0.5 to 20 meters) |
| Hose Operating Temperature (°C) | -270°C to 815°C |
| Hose Operating Temperature (°F) | -454°F to 1500°F |
| Outer Jacket Material | 316 stainless steel |
| Performance Level | |
| Pressure | |
| Minimum Bend Radius, Static | 5.00 in. |
| End Fittings | M16x1 Female |
| Product type | Hose Insulation > Vacuum Jacketed Hoses |
| Tube Stub OD | 0.500" |
| Wetted Surface Material | 316 stainless steel |
| End Fittings (optional) | M16x1 Female |
*For high temperature applications (over 38C/100F), see MAWP derating factor by temperature. Contact us for assistance.
Download product catalog with technical specifications →
