Maintaining gas temperature in semiconductor deposition processes with vacuum insulated PFA lines

Share on:

Process engineers in semiconductor manufacturing face a critical challenge of maintaining consistent thermal conditions across fabrication steps. Vapor deposition, etching, chemical delivery, and other sensitive applications require highly engineered equipment that minimizes temperature fluctuations from carrier gases. Deposition rates, film uniformity, and etch precision can all be negatively impacted by improper thermal management of semiconductor gases.

PFA or PTFE tubing with Insulon Vacuum Jacketed Hose delivers the ideal solution for next-generation deposition systems. These assemblies combine fully non-metallic wetted surfaces and a smooth internal bore with maximum thermal insulation delivered by proprietary vacuum technology.

PFA and PTFE for high purity semiconductor fluid handling

PFA (perfluoroalkoxy alkane) and PTFE (polytetrafluoroethylene) are fluoropolymers. These materials are used when applications require corrosion resistance, high purity, and chemical stability at elevated temperatures.

PFA and PTFE are often used for wetted parts in pumps, valves, and tubing that carry acids, solvents, and other aggressive fluids used in etch, deposition, and other semiconductor manufacturing processes.

Uninsulated PTFE tube
Uninsulated PTFE tube

Thermal losses coming from uninsulated transfer lines

Uninsulated PFA and PTFE transfer lines move pre-heated chemicals or gases from sub-fab storage to the process chamber. If too much heat is lost during transfer, the materials can undergo thermal degradation. This can result in inconsistent temperatures, condensation, or unintentional phase changes. Failure to manage these potential issues can compromise process control.

This is especially problematic for vapor deposition processes (CVD, ALD), where thermal uniformity is crucial for film consistency and repeatability. Likewise, in etch processes and photoresist delivery, precise temperature regulation ensures reaction rates and flow behavior remain within spec.

Vacuum insulated PFA and PTFE tubing

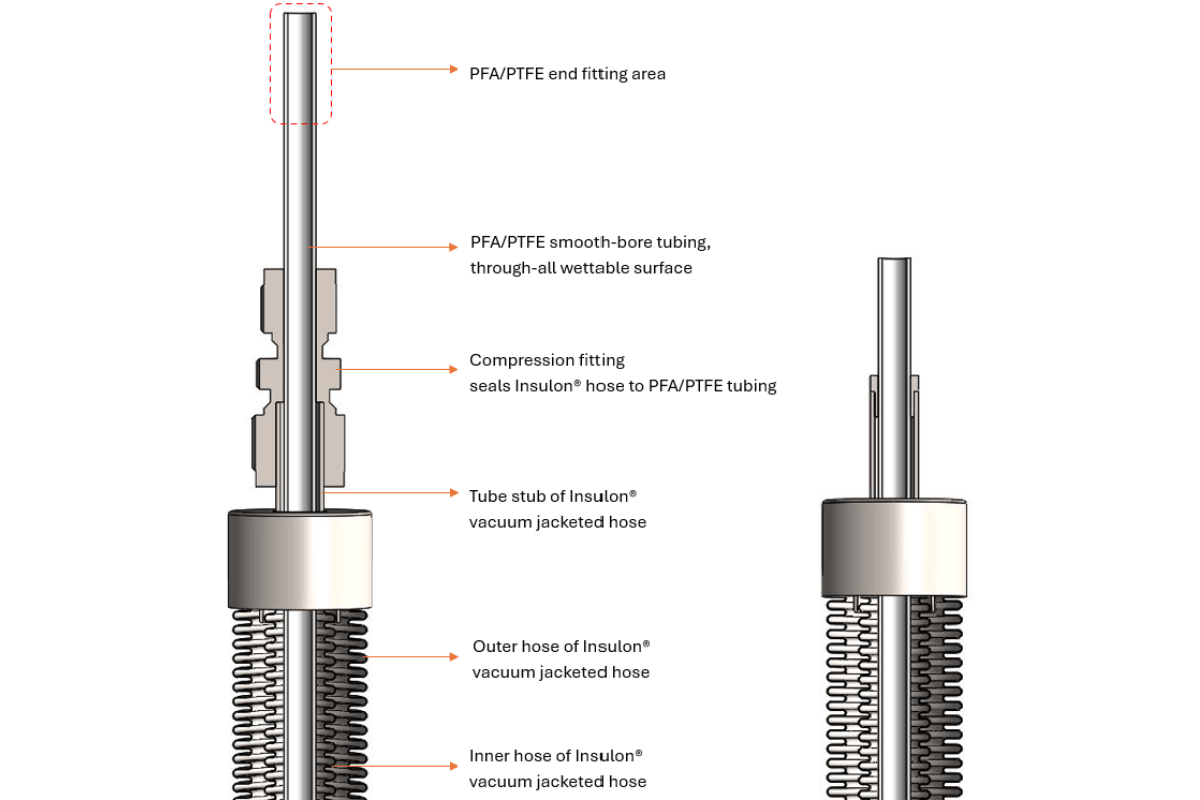

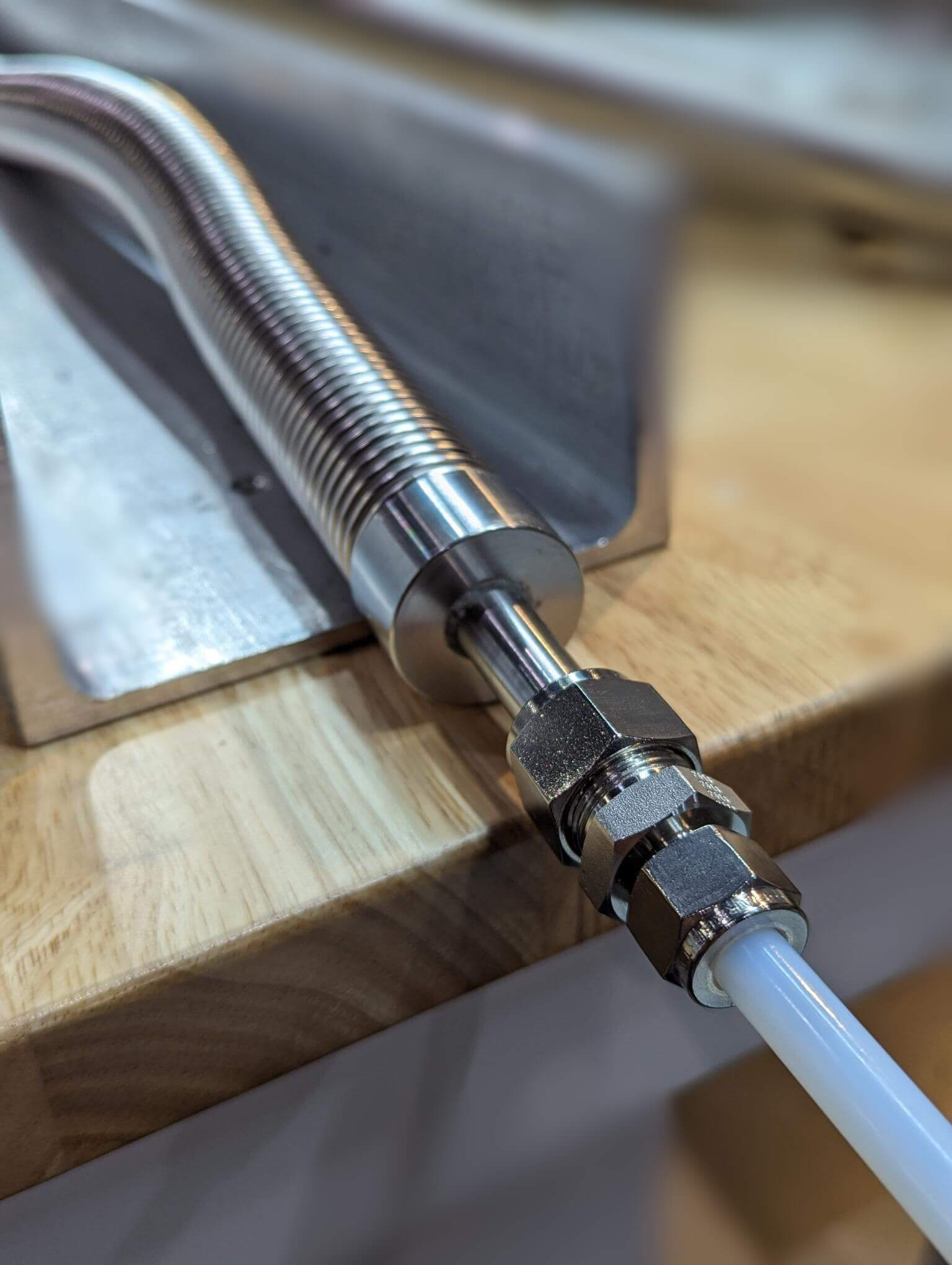

To address this gap, PFA and PTFE tubing can be thermally insulated with Insulon Hose. These vacuum jacketed hoses utilize a double-walled construction and proprietary form of vacuum insulation to dramatically reduce heat loss. The ultra-high vacuum barrier minimizes conduction and convection, maintaining process temperatures across long runs or through thermally variable environments.

When the thermal performance of Insulon is combined with the chemical inertness of PTFE or PFA, the assembly delivers material compliance and maximum thermal efficiency in one package. Benefits include:

  • Thermal stability: Reduce temperature fluctuations and maintain precise thermal profiles for heated or chilled fluids.
  • Process consistency: Enable tighter control over critical process variables in deposition, etch, and chemical delivery.
  • Lower contamination risk: Maintain temperature-sensitive chemical integrity during transfer, reducing particle generation and unwanted reactions.

Applications

Pairing PFA and PTFE tubing with Insulon Vacuum Jacketed Hose unlocks the next level of thermal control while delivering on chemical compatibility. Whether your system is handling hot acids, chilled DI water, or vapor-phase precursors, insulating PFA with Insulon vacuum insulation protects both the process and the product. Applications include:

  • CVD and ALD deposition lines, where temperature-sensitive precursors require tightly controlled delivery
  • Wet etch and clean tools, especially those using aggressive chemistries like HF or HCl
  • Photoresist and developer lines, where minor deviations in temperature can negatively affect pattern resolution
